 Output Power

 6hp/4.4kW @ 7500 omw/min

 Propeller

 22x10; 23x8 23x10; 24x8

 Weight

 1273g/1510g (excl./incl. muffler and ignition)

  Delivery includes: spark plug, ignition and muffler.



High power—low weight:

Innovation is excellence; so, when DLE added innovations like improved crankshaft bearings, and a better piston/cylinder fit to their engines, serious R/C pilots got very excited. The DLE-61 weighs four pounds and cranks out over six horsepower from a durable and long-lasting engine.
Extras like an airplane-specific carburetor, muffler, standoffs and electronic ignition boost performance even further. It's a solid 60cc engine at the best price you'll find.

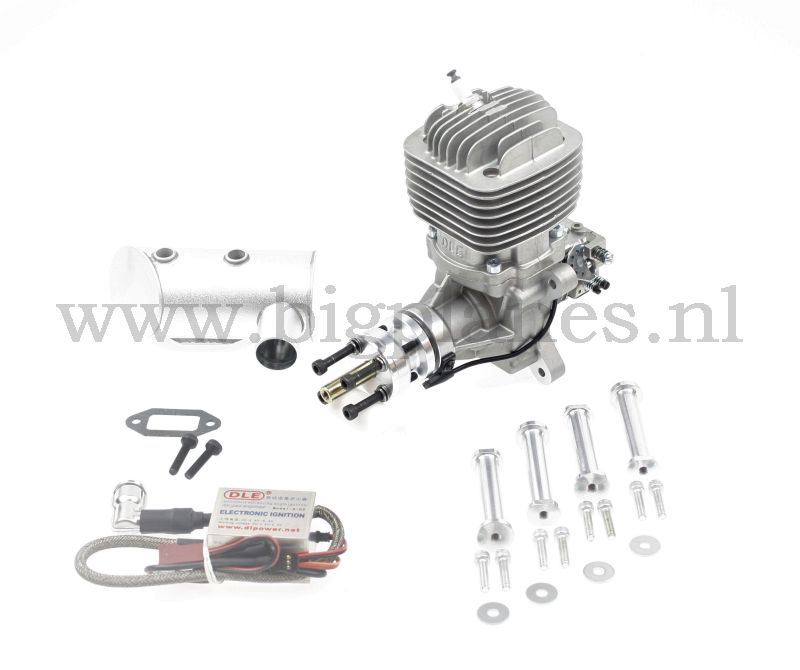

It includes engines standoffs, electronic ignition, spark plug and Pitts style muffler.

 Technische Specificatie:
 Cylinder Inhoud  60   ccm
 Vermogen   6   hp
 4.4  kW
 Trekkracht  15  kg
 Toerental  1400 - 7500  omw/min
 Propeller  22x8 - 23x10   inch
 Spanning elektronische ontsteking  4,8 tot 8.4  Volt
 Brandstof verhouding  30 : 1  benzine : olie
 Gewicht:
 Motor  1273 gram
 Uitlaat    110 gram
 Ontsteking    110 gram
 Documentatie:
 Gebruikers Handleiding DLE61 User Manual
 Link naar Fabrikant  DLEngine
 Links:
 DLE61 Onderdelen
 Vergelijkbare Elektro Motor

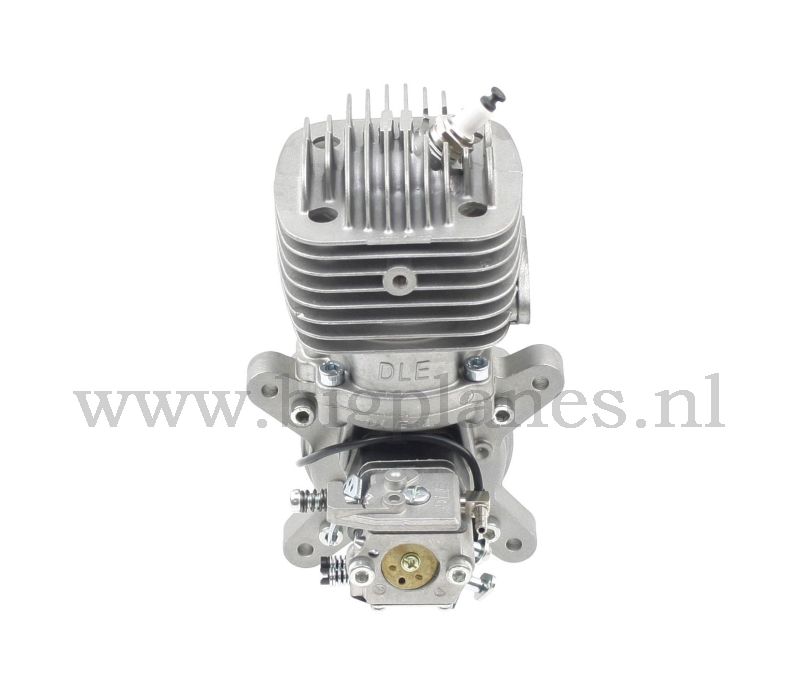

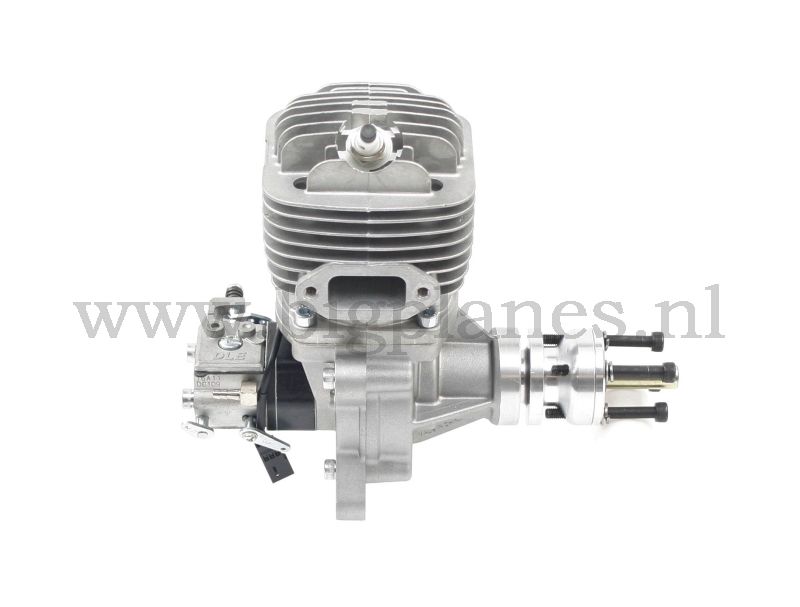

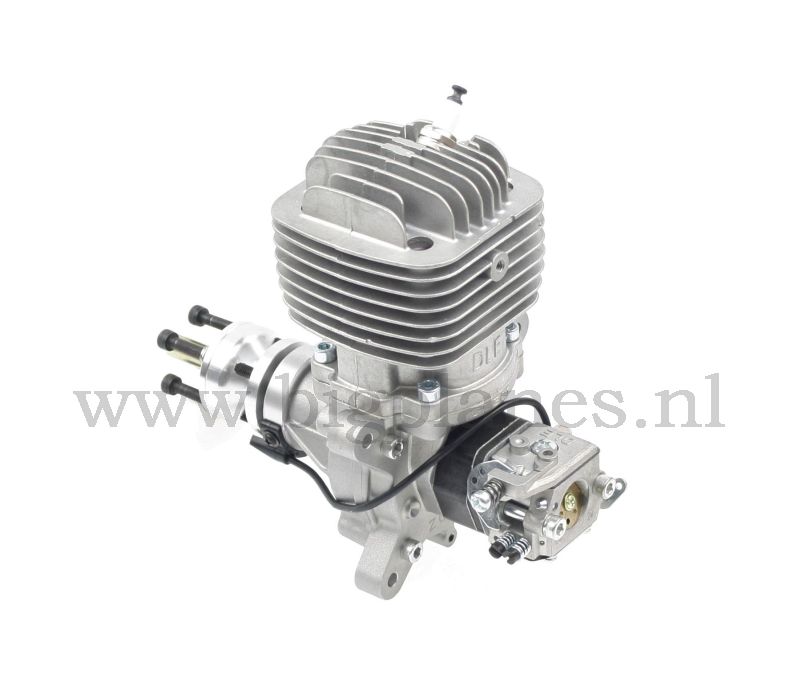

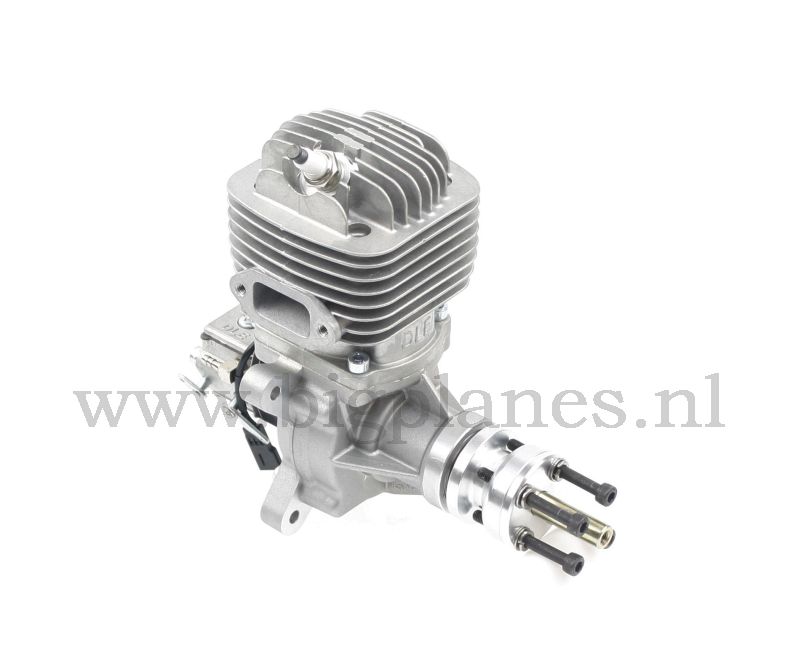

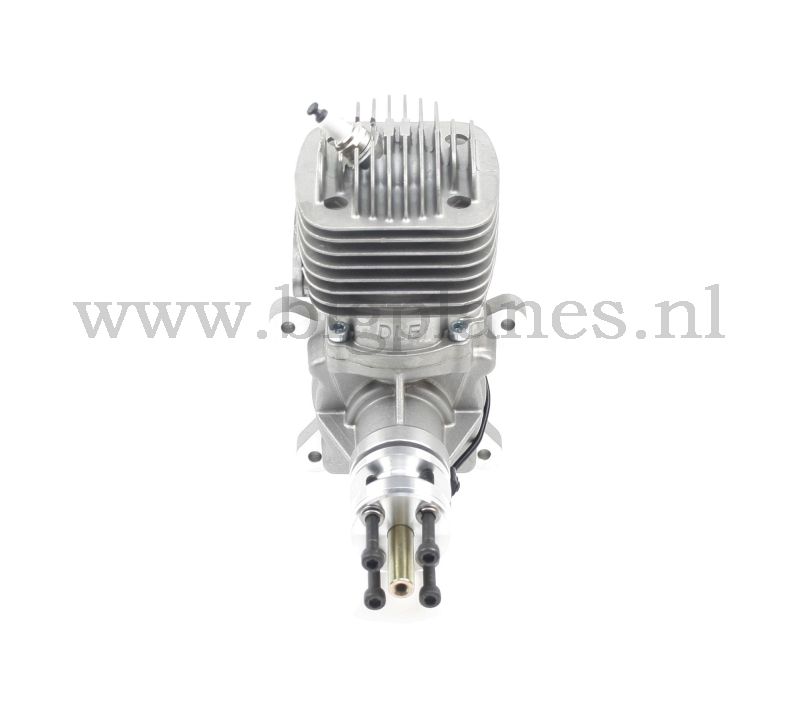

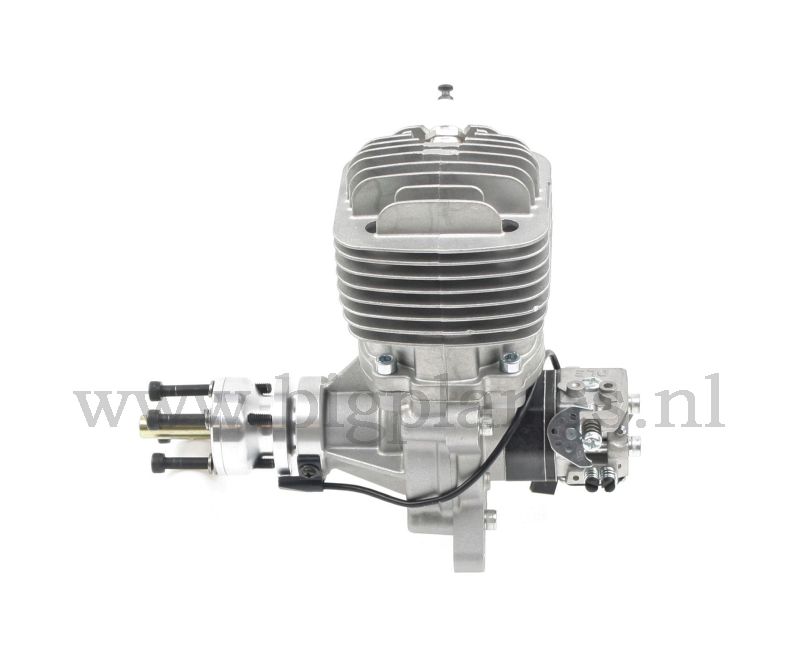

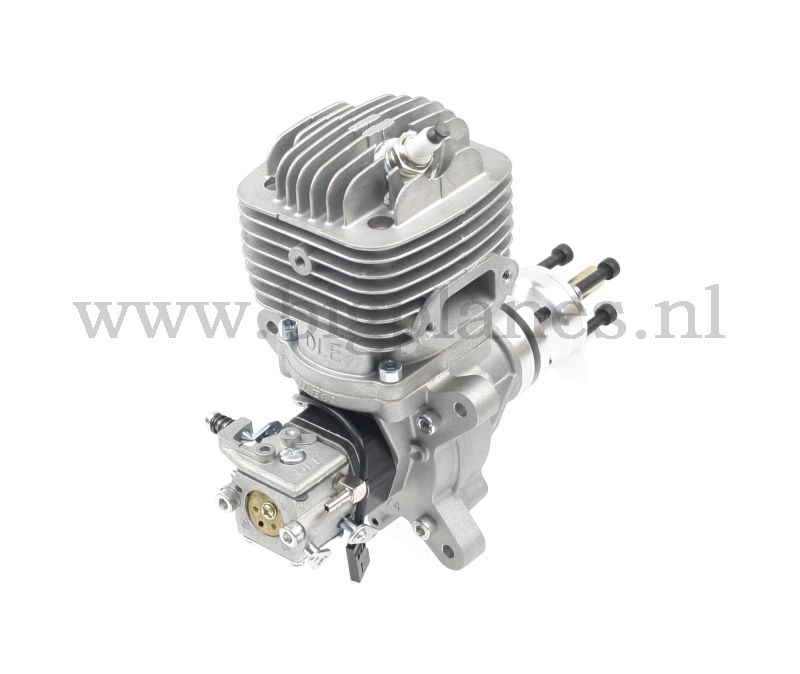

Enkele detail afbeeldingen van de DLE61:



The flange of the DLE61 is equal to the DLE55RA.
