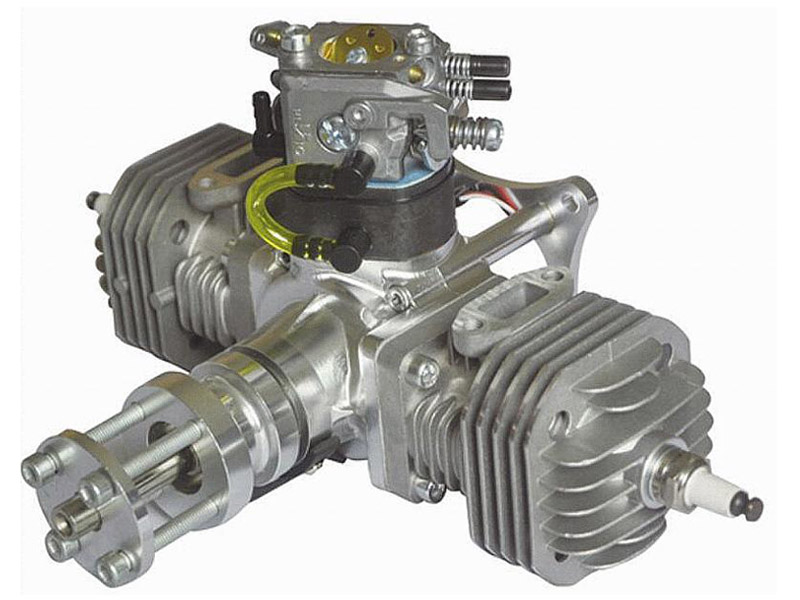

RCGF 40cc Twin rc model gas engine (4.6hp, 1495gr)

RCGF-40cctwin

 Output Power

 4.6hp/3.5kW

 Propeller

 19x8, 19x10, 20x8 & 20x10

 Weight

 1180g/1495g (excl./incl. muffler and ignition)

  Delivery includes: spark plug, ignition and muffler.

 << Vorige



 Technical  Specification:
 Displacement                         (Cylinder Inhoud)  40                                ccm

 Output Power                                (Vermogen)

 4.6   hp
 3.5   kW
 Thrust                                            (Trekkracht)    kg
 Speed Range                                   (Toerental)  1500 - 7500  rpm (omw/min)
 Propeller

 20x10

 20x10 @ 6900 rpm

 inch
 Ignition power supply      (Spanning ontsteking)  4.8 - 6  Volt
 Spinner bolt size  M5 (5mm)
 Gas/Oil mix ratio            (Brandstof verhouding)  30 : 1  gas : oil
 Weight:
 Engine (incl. prop and engine mounting)    gram
 Muffler  2 x  gram
 Ignition  150  gram
 Documentation:
 User Manual               (Gebruikers Handleiding)  RCGF 40cc Twin User Manual
 Links:
 RCGF-40cctwin Spare Parts
 Comparable Brushless Engine  -
 Ignition                                             (ontsteking)  DC-CDI (Capacitive Discharge Ignition)





RCGF40 Dimensions:

Exploded view:



Important Notice: You must read the warranty and operating instructions that are provided with the engine. Any modification of or disassembly of the engine while under warranty will VOID the warranty. If you have an engine that does not run properly please contact us. DO NOT take the engine apart as this will VOID the Warranty. Crash damage is NOT covered under warranty. The warranty is from RCGF engines and NOT BigPlanes. We are a Dutch distributor for RCGF. This warranty applies only to RCGF products purchased from BigPlanes. If you have to return the engine, please retain a copy of its serial number.

!
