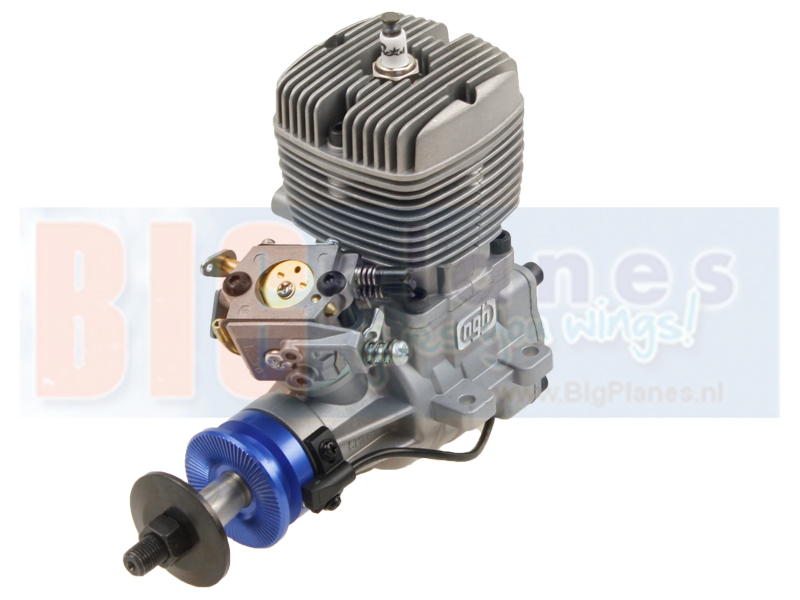

NGH GT35 35cc gas engine (4.22hp, 1390gr)
NGH
NGH-GT35
Bestel
  • Beschrijving
  • Meer

 Carburetor

 Wallbro WT Series

 Propeller

 18x10 .. 20x8

 Weight

 1150g/1390g (excl./incl. muffler and ignition)

  Delivery includes: spark plug, ignition and muffler.





Technical  Specification:
 Displacement  35                      ccm

 Output Power         (Vermogen)

  4.22  hp
    kW
 Thrust                  (Trekkracht)    kg
 Speed Range           (Toerental)  1500 - 8800  rpm (omw/min)
 Propeller  18x10 - 20x8  inch
 Ignition power supply  4.8 - 8.4  Volt
 Spinner mount thread  -  mm
 Gas/Oil mix ratio   25 : 1  gas : oil
 Weight:
 Engine                                         1150  gram
 Muffler  140  gram
 Ignition  100  gram
 Documentation:
 User Manual

 GT35 User Manual



Engine dimensions:

NGH GT35 35cc gas engine
