NEW In Stock.

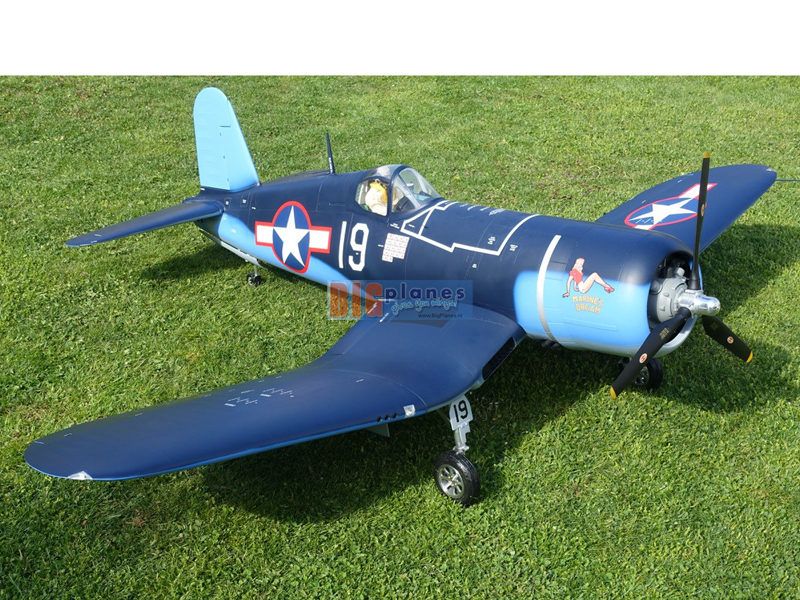

 TOPRC F4U Corsair, optional retract system
 Wing span    (spanwijdte)  2362 mm   93"
 Length  1907 mm  75"
 Flying weight  13 - 15 kg                       lbs
 Radio  8+ channels,  servos
 Engine Gas       (benzine)  70cc - 100cc



 Detailed specification continued:

 Wing area  104 dm2   sq.ft
 Wing loading   gr/dm2                 oz/sq.ft
 Radio

 8+ channels,  servos (throttle,
 rudder, elevator, aileron, flaps, choke)

 Options  Two wheel retract system
 Documentation  Instruction Manual
 Manufacturers website  TOPRC-Website



Diameter of the cowl is between 25.5cm (front) and  26cm (firewall).

A SAITO FG-90R3 or UMS7-90 perfectly fits under this cowl. The UMS-9-115 could fit with a little rework.



Features:

  1. Full composite construction
  2. True scale outline with accurate details.
  3. All surface prepainted,decals applied and clear coated
  4. Scale painted full-depth cockpit, scale exhaust, slipping canopy included.
  5. Scale drop tanks and canopy are included
  6. Detachable Scale antenna included;
  7. Detachable main wing and tailplane for easy transportation;
  8. Removable hatch on fuselage for easy access into the plane and change accessories;
  9. Functional authentic appearance flaps for smooth landing.
  10. High quality Alu push rod included
  11. Complete high-quality hardware package featuring fiberglass control horns
  12. Full and proper working landing gear doors front and rear included.
  13. High scale painted spinners, scale main wheels & electric retracts are available as option
  14. More than 95% assembled complete in factory.
  15. Can be powered by engine or motor.
  16. 12mm corrugated board boxes packing to protect the parts to avoid damaged.



Optional:
Retract system: including alloy wheels, oleo struts etc. Incorporate all of the latest design improvements.




We also have the following items available for the F4U Corsair:

- Retract sets

- Spinners

- Scale propellors
