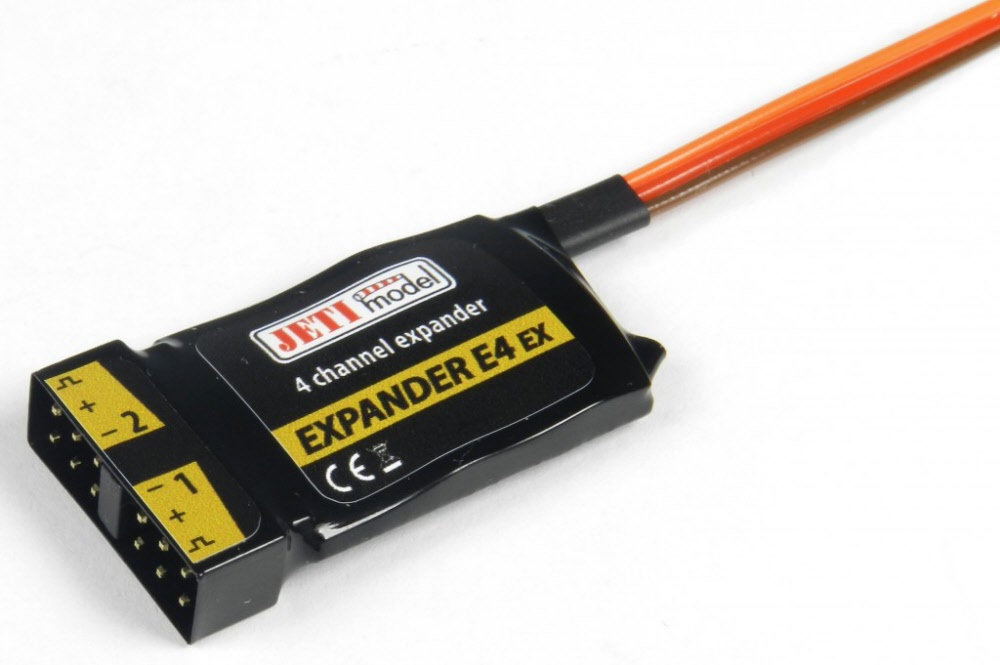

Expander E4, Jeti

JETI
J-EX4
Bestel
  • Beschrijving
  • Meer

The EXPANDER E4 EX module is used to expand the number of connecting slots for further telemetric sensors. In this way it becomes possible to connect up to 4 sensors to a DUPLEX receiver. The expander can be set in a way which enables the DC/DS receiver or the JETIBOX to show several measured values simultaneously.

Specifications:

Weight [g] 4
Dimensions [mm] 36 x 20 x 5
Operational temperature [°C] -10 ... 85
Supply Voltage [V] 3,2 - 8,4
Average Current [mA] 8
