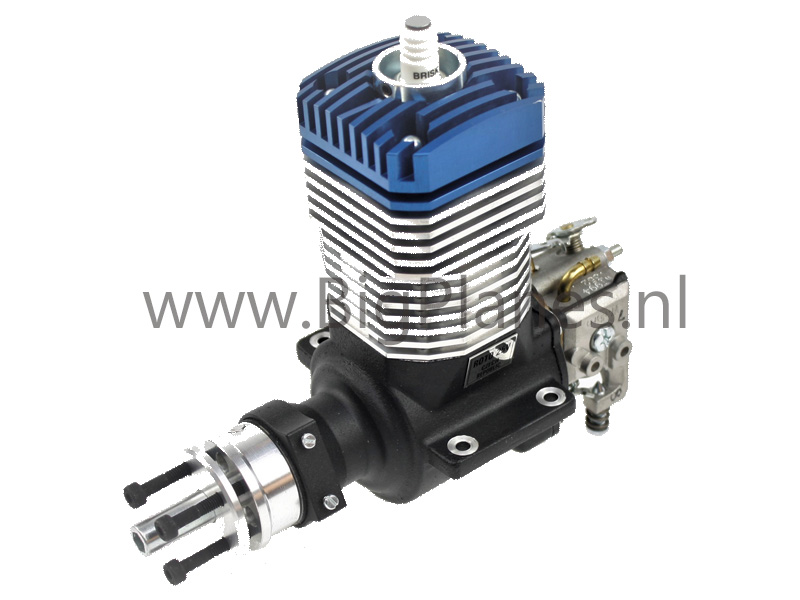

ROTO 25 V 25cc gas engine for rc model airplanes.

 Output Power

 7.5kg static thrust

 Propeller

 18x8 .. 19x8

 Weight

 1260g/ 1410g (excl./incl. ignition)

  Delivery includes:  spark plug and ignition.



Technical  Specification:
 Displacement                         (Cylinder Inhoud)  25  ccm

 Output Power                                (Vermogen)

   hp
    kW
 Carburetor

 Walbro


 Speed Range                                   (Toerental)  1800 - 9000  rpm (omw/min)
 Propeller  18x8 .. 19x8  inch
 Ignition power supply      (Spanning ontsteking)  4 - 9  Volt
 Spinner bout diameter  10  mm
 Spinner bout schroefdraad  M5   mm
 Gas/Oil mix ratio            (Brandstof verhouding)  40 : 1  gas : oil
 Weight:
 Engine   (including mounting HW)  1160  gram
 Muffler  100  gram
 Ignition  150  gram
 Documentation:
 User Manual              (Gebruikers Handleiding)
 Afstellen Ontsteking Walbro Manual  Wallbro WT Series Manual
 Link naar Fabrikant
 Links:
 ROTO Spare Parts



The ROTO 25 V 2-stroke gas engine from ROTO is especially developped for scale models.



Detailed overview of the delivery of the ROTO 25 V gas engine:





Dimensions of engine:
