CYMODEL FW190, 50cc, optional retract system

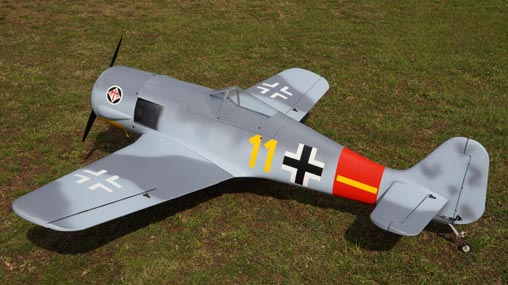

CYMODEL FW190 50cc
 Wing span    (spanwijdte)  2120 mm   83.5"
 Length  1790 mm                       70.5"
 Flying weight  9 - 12kg
 Radio  6 channels, 9 servos
 Engine Gas       (benzine)  40 - 60cc

 Detailed specification continued:

 Wing area  63.8 dm2  989 sq.in
 Wing loading  gr/dm2                           oz/sq.ft
 Options  Retract system
 Documentation  FW190 Instruction Manual
 Manufacturers website      CYMODEL Website

CYMODEL creates detailed and nice user or instruction manuals for their rc model airplanes. Also a detailed building or instruction manual for the FW190 from CYMODEL is available.

See FW190 Instruction Manual







Optional:
Both electric as well as air retracts are available. The retracts include alloy wheels and oleo struts. All in a very high quality.



Product Description:

1. High-quality, prepainted, fiberglass fuselage and cowling;
2. High-quality balsa and plywood material;
3. Light weight and strong construction;
4. Functional scale flaps;
5. Aluminum wing tube;
6. Aluminum stabilizer tube;
7. Hardware package included;
8. Scale color scheme with professional covering;
9. Decals pre-applied at factory.

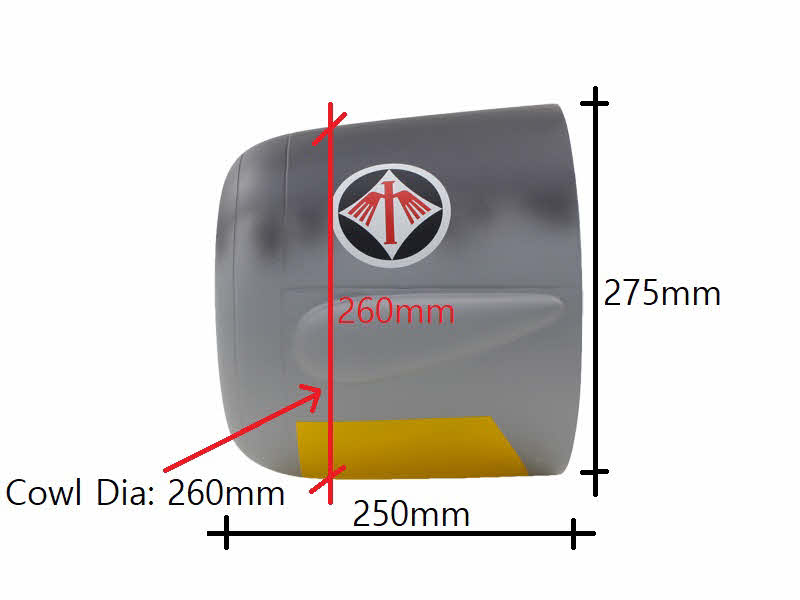

Cowl dimensions:
