CYMODEL Spitfire, optional retract system

CYMODEL Spitfire 100cc
 Wing span    (spanwijdte)  2794 mm   110"
 Length  2370 mm  93.3"
 Flying weight  17 - 19kg
 Radio  6 channels, 8-9 servos
 Engine Gas       (benzine)  85 - 120cc

 Detailed specification continued:

 Wing area  143 dm2  2210 sq.in
 Wing loading  gr/dm2                            oz/sq.ft
 Options  Retract system
 Documentation  Spitfire MK IX Instruction Manual
 Manufacturers website      CYMODEL Website



CYMODEL creates detailed and nice user or instruction manuals for their rc model airplanes. Also a detailed building or instruction manual for the Spitfire mk IX from CYMODEL is available.

See Spitfire MK IX Instruction Manual



Product Description:

1. High-quality, prepainted, fiberglass fuselage and cowling;
2. High-quality balsa and plywood material;
3. Light weight and strong construction;
4. Functional scale flaps;
5. Aluminum wing tube;
6. Aluminum stabilizer tube;
7. Hardware package included;
8. Scale color scheme with professional covering;
9. Decals pre-applied at factory.




Features:
Functional flaps. Epoxy resin fiberglass fuselage and cowl, built up wings, covered with special covering which paint adheres to, and finished with an authentic British paint scheme, decals pre-applied and clear coated!

Hardware package included.



Optional:
Retracts: including alloy wheels and oleo struts. All in a very high quality. Both air as well as electric retracts are available.

Spinner of 6" is needed.

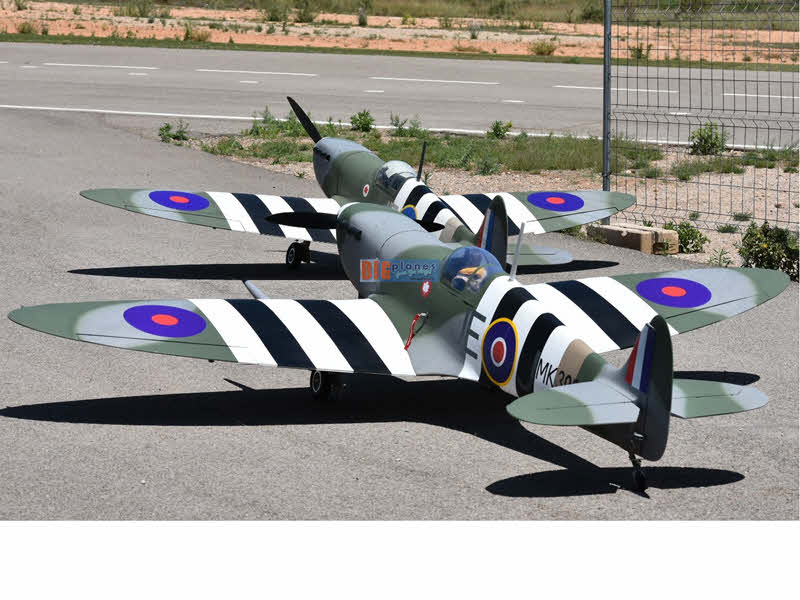

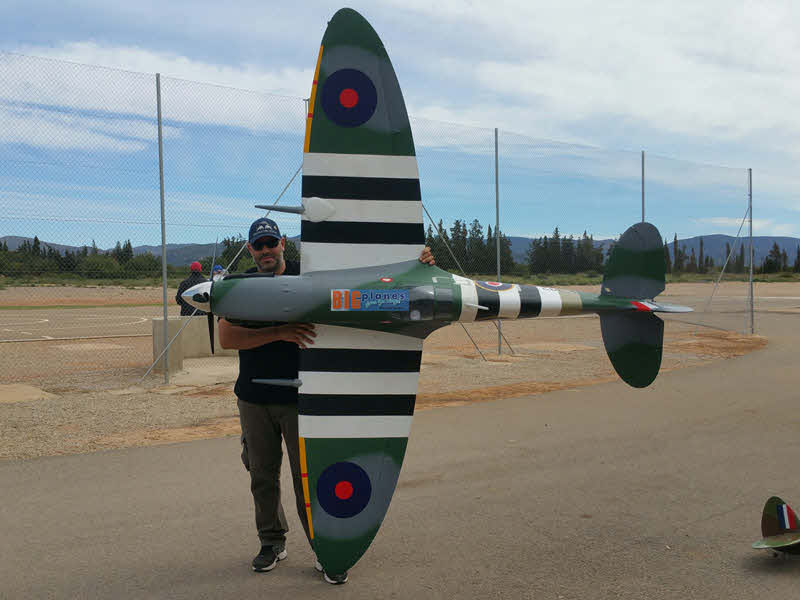

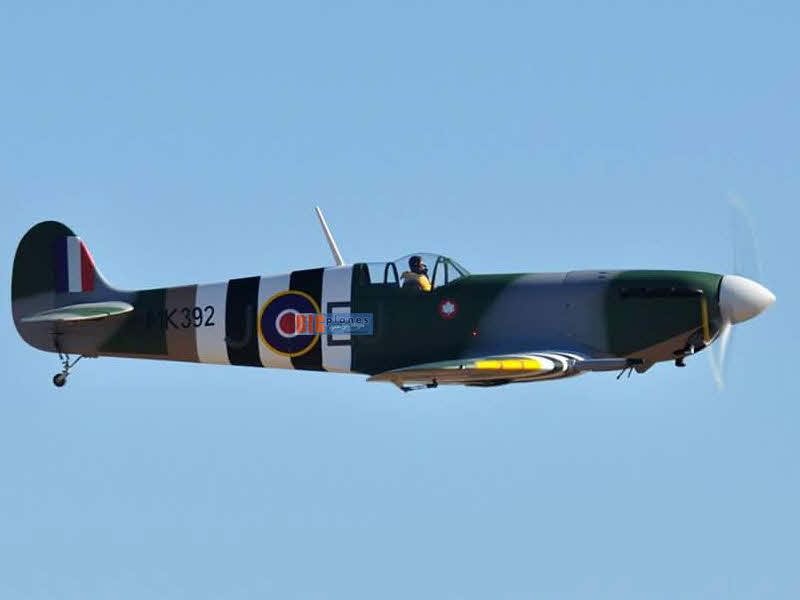

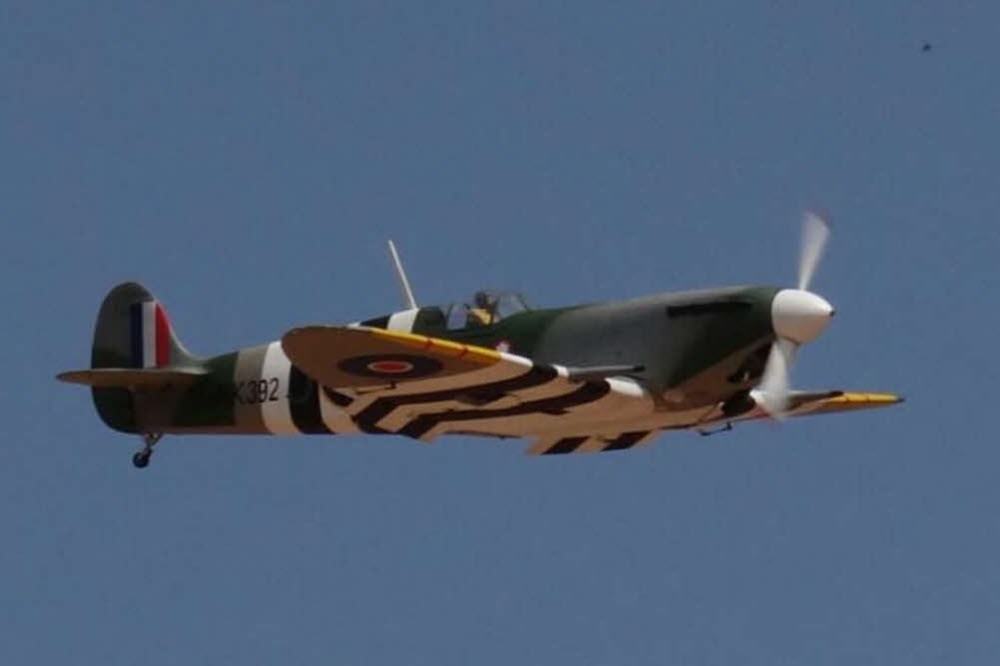

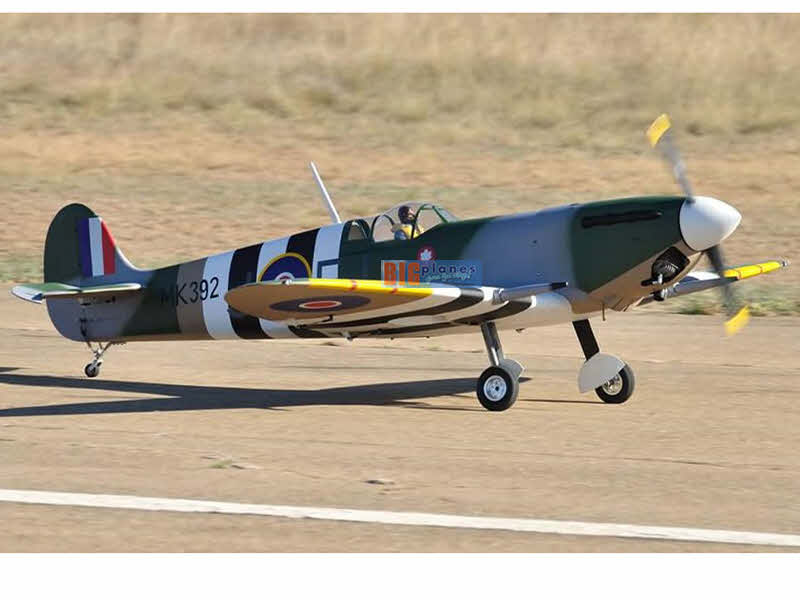

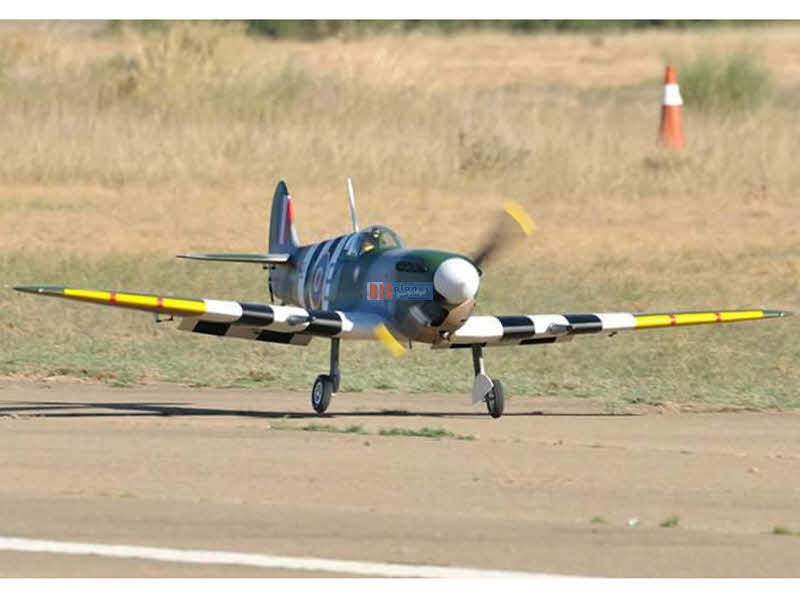

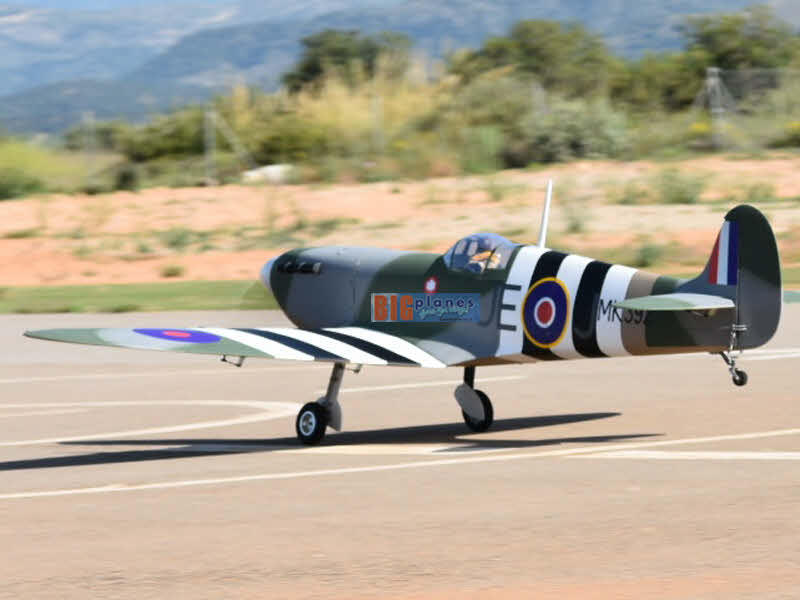

The pictures below show the Spitfire of Fabian Gamba:

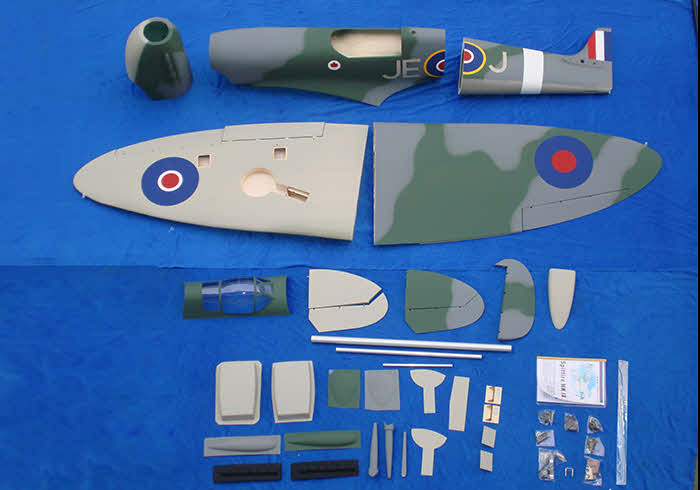

Kit Overview:

Video of this model:



Some  other pictures:

Cowl dimension:



Features:
Factory painted in authentic British paint scheme with pre-applied decals, covered with clear coat.
Functional flaps. Epoxy resin fiberglass fuselage and cowl, built up wings, covered with special covering which pain adheres to, and finished with a flat paint scheme, decals pre-applied and clear coated!

Hardware package included.



Optional:
Retracts: including alloy wheels and oleo struts. All in a very high quality. Different sets are available both electric as well as pneumatic.



History:
The Spitfire is quite possibly the most famous and celebrated warbird of all time. It is often creditted with the british victory over the Germans in the battle of Britain, even though the Hurricane actually scored more aerial victories, and its status is legendary. More spitfires were made during the second world war than any other fighter aircraft, and it holds the distinction of being the only allied fighter in service at the beginning of the war that was still in service at the end.

Designed by R.J. Mitchell and later variants by Joseph Smith, the spitfire was a beautiful single seat fighter aircraft. Its gently contoured wings provided extremely strong flying acteristics, allowing for very tight maneuvering at high speeds. This gave the spitfire a huge advantage over German aicraft during the battle of britain, although it was largely equalled by the introduction of the FW-190 and others later in the war. Its thin eliptical wing allowed it to fly faster than the Hurricane, although the latters tight placement of 50 calibre machine guns and closer point of conversion proved deadlier to German bombers. Its distinctive silhouette and the beauty of the design made it a legend. While the Spitfire was constantly compared to the BF-109, the spitfire was a more flexible design, and allowed for better and better versions, making it's later marks more potent than those of the BF-109.

The spitfire saw extensive service after the war in many conflict areas, including the dle east, Arab Legion Spitfires tangled with the new state of Israel's Avia S-199 versions of the ME-109. Later in that conflict, there were actually many engagements of spitfires v. spitfires as the Israelis managed to secure some from Czechoslovakia.
