The FSD FC2830 is an engine suitable for models with a flying weight between 0.4 - 1 kg.

 Model reference  FC2830-09
 KV (RPM/V)  1290
 No Load Current (A)  1,1
 No. of LiPo cells  2 - 3
 No. of NiMh/NiCd cells  6 - 10
 Max. Current 30s (A)  18
 Running Current (A)  <16
 Max. Input Power (W)  180  (3 LiPo x 3,3V x 18A)
 Weight (g)  56
 Prop adapter diameter (mm)  5
 Shaft diameter (mm)  3,175
 Max. Pull (kg)  1,2
 Propellor (inch)  < 9 x 5
 Internal resistance (milli-ohm)    83
 Number of poles  14
 Maximum efficiency  92
 Dimensions  see below
 Proposed ESC

 Pentium-40A

 Dynam 30A

 Manufacturer Website  FSD

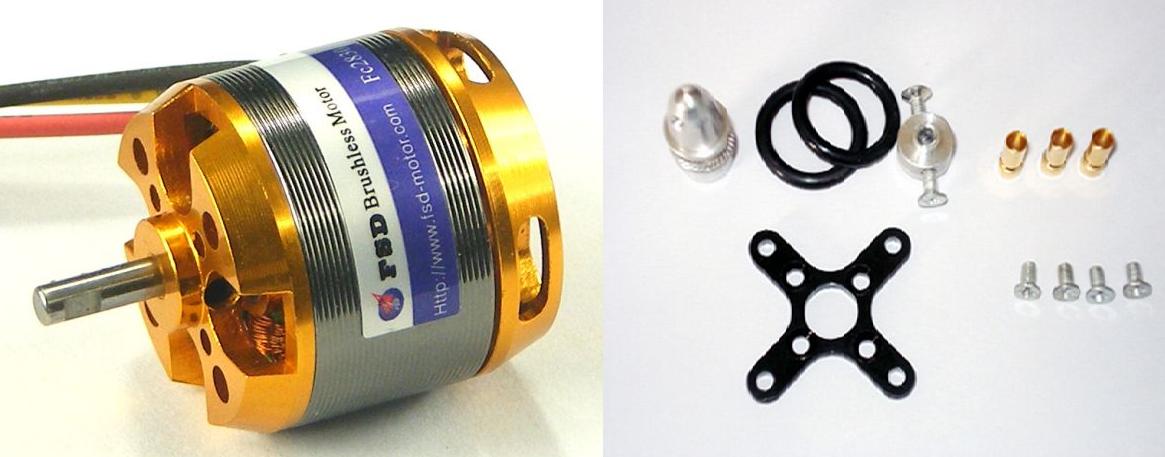

Product delivery overview:



Motor dimensions of the FC2830:
