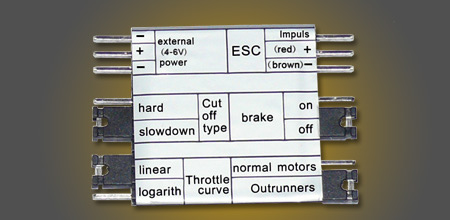

Program the ESC from Dynam using this easy to use program card.

Dynam ESC connectivity and features overview.

Documentation: Program Card Manual



Connectivity:

- ESC: Connect with the Dynam ESC-set
- External power: Only used to connect with an external powersupply of 4-6V when the ESC has no build in BEC functionality.



Program features:

-Brake on: brake is active
-Brake off: non active brake

-Normal Motors: for2,4,6pole motors.This timming gives maximum efficiency.
-Out rnnners: strongly recommended for outrunners

-Cut off type hard: motor is fully off immediately after reaching cut off voltage
-Cut off type slow down: motor turns off slowly by power reduction

-Throttle curve linear: half throttle is equal as 60% of maximum RPM
-Throttle curve logarithm: half throttle is equal as 80% of maximum RPM

Default Voltage:Cut off is set to 0,9V per cell for NiXX,3,0V per cell for Li-XX



 Wiring diagram:
