DLA Engine DLA64 gas engine.

 Output Power

 7.2hp/kW

 Propeller

 22x10, 23x10,24x8

 Weight

 1620g/1930g (excl./incl. muffler and ignition)

  Delivery includes: 2 x spark plug and ignition.


 Technische Specificatie:
 Cylinder Inhoud  64   ccm
 Vermogen    7.2  hp
   kW
 Trekkracht  15.6  kg
 Toerental  1400 - 8500  omw/min
 Propeller  22x10, 23x10, 24x8  inch
 Spanning elektronische ontsteking  6.6 - 8.4  Volt
 Brandstof verhouding  40 : 1  benzine : olie
 Gewicht:
 Motor  1620 gram
 Uitlaat  65 gram
 Ontsteking  180  gram
 Documentatie:
 Gebruikers Handleiding
 Link naar Fabrikant  DLA engine
 Links:
 DLE116-I2 Onderdelen  t.b.d.
 Vergelijkbare Elektro Motor  -



The DLA64 gas engine from DLA is especially developped for scale models.



Note:

The DLA64 have had a test-run by engineers from DLA. The DLA64 engine delivery also contains a test-sheet with the test data like:  prop used, temperatures (ambient, cylinder, crankcase), idle and max . RPM measured etc.



Detailed overview of the delivery of the DLA64 gas engine from DLA:

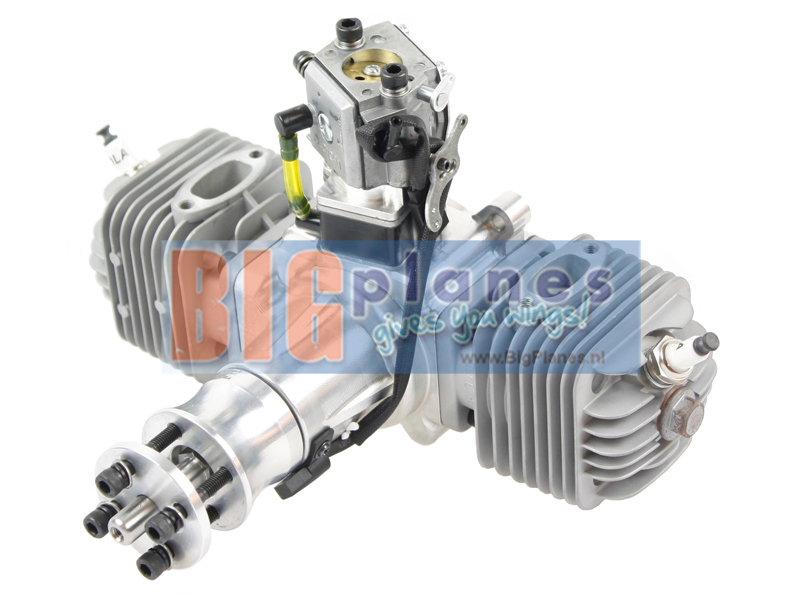

Detailed pictures of the DLA Gas Engine DLA64 for rc model and scale airplanes:















PART NAME TECHNOLOGY/BRAND/FEATURE
Crank Case CNC Machining, Aviation Aluminium
Crank Shaft CNC Machining / Special Steel / Tolerence 0.001mm
Carburetor Walbro / Original Japanese Brand
Ball Bearing FAG / Famous German Brand
Needle Bearing IKO / Famous Japanese Brand
Spark Plug CM6 / Iridium
CDI 6.6-8.4 Voltage
