  • Description
  • More

The FSD FC3536 is an engine suitable for models with a flying weight between 1 - 2.5 kg.

 Model reference  FC3536-06
 KV (RPM/V)  1270
 No Load Current (A)  1,8
 No. of LiPo cells  3 - 4
 No. of NiMh/NiCd cells  8 - 11
 Max. Current 30s (A)  38
 Running Current (A)  <32
 Max. Input Power (W)  500  (4 LiPo x 3,3V x 38A)
 Weight (g)  95
 Prop adapter diameter (mm)  6
 Shaft diameter (mm)  4
 Max. Pull (kg)  1,2
 Propellor (inch)  < 11 x 7
 Internal resistance (milli-ohm)    30
 Number of poles  14
 Maximum efficiency  93
 Dimensions  see below
 Proposed ESC

 Pentium-60A

 Dynam 70A

 Manufacturer Website  FSD

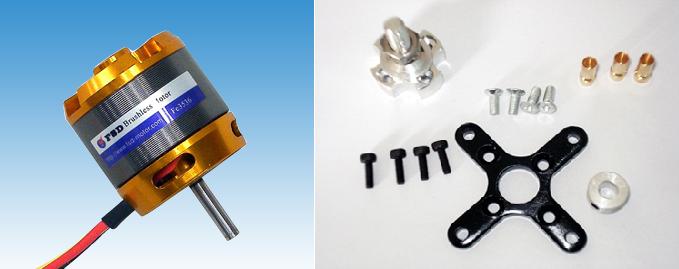

Product delivery overview:



Motor dimensions of the FC3536:
